Reviving & Securing an Enterprise Switch (Cisco Catalyst 2960-X Password Recovery)

3 min read Page Views

Project Overview

This project documents the recovery, reset, and reconfiguration of a previously locked Cisco Catalyst 2960-X enterprise switch. The switch had unknown login credentials and had not been used in a while. I recovered console access, bypassed the password protection, performed a full configuration wipe, and verified system integrity. This sets the foundation for integrating the switch into my home lab environment for future VLAN, trunking, and routing projects.

SwitcH #4

Stack Used

  • Cisco Catalyst 2960-X (24-port PoE)

  • Tera Term (terminal emulator)

  • Console cable (RJ45 to USB via USB-serial adapter)

  • Windows 11 (management workstation)

1. Initial State: Unknown Switch, No Access

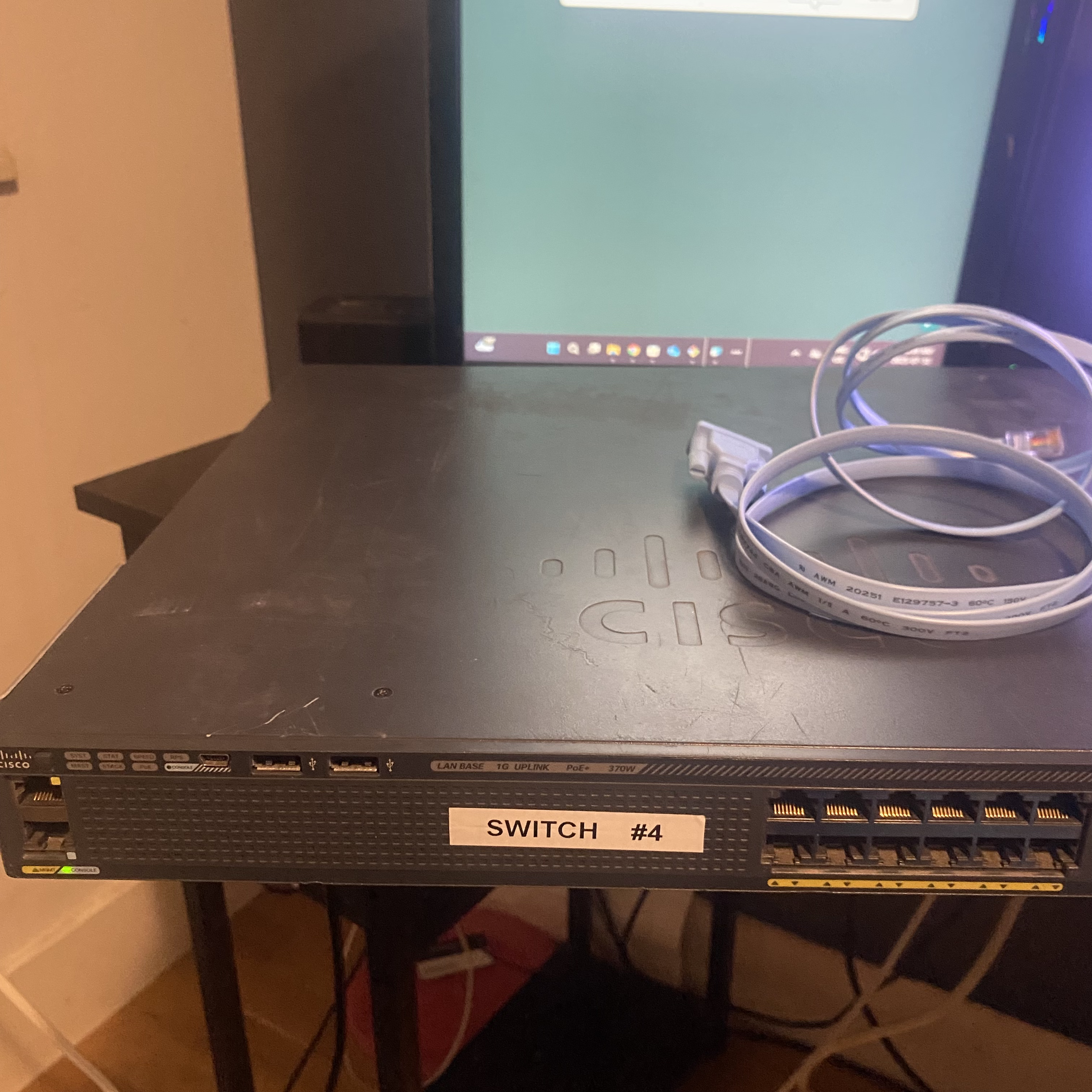

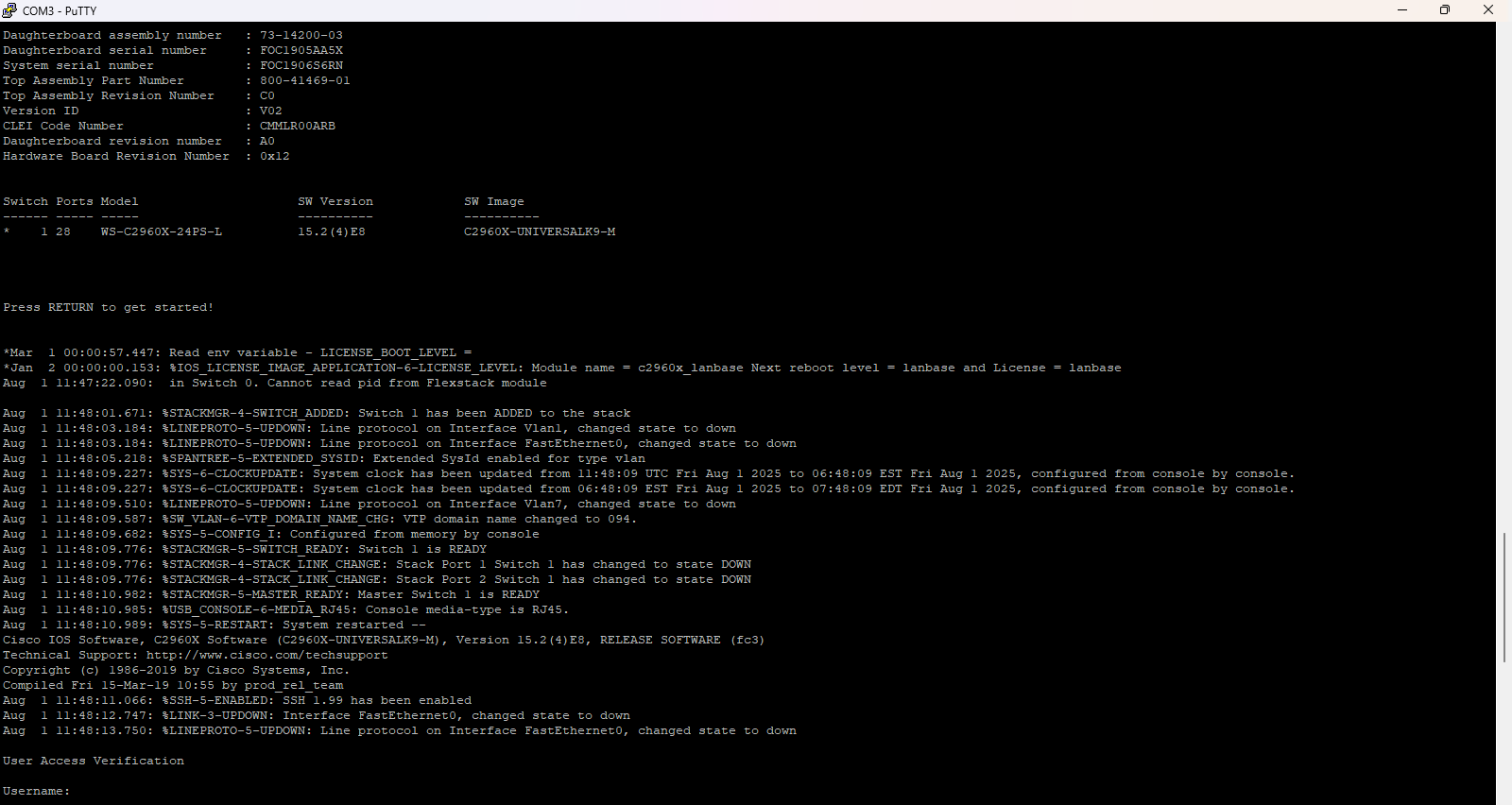

The switch was given to me with no working login credentials. Powering it on resulted in a “Username:” prompt with no way to authenticate.

Switch

2. Connected via Console Cable

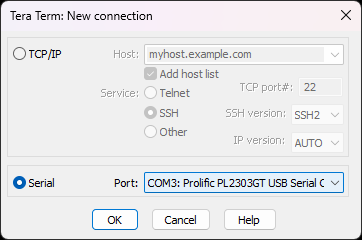

I used a USB-to-Serial adapter connected to a blue Cisco RJ45 console cable, then opened a session with Tera Term using the correct COM port (found via Device Manager).

Settings:

  • Baud rate: 9600

  • Data bits: 8

  • Parity: None

  • Stop bits: 1

  • Flow control: None

Connection

Side note: PuTTY failed to send Break during boot. Tera Term worked after I spammed Break from the “Control” menu and hit the MODE button on the switch simultaneously.

3. Entered Boot Loader Mode (switch: prompt)

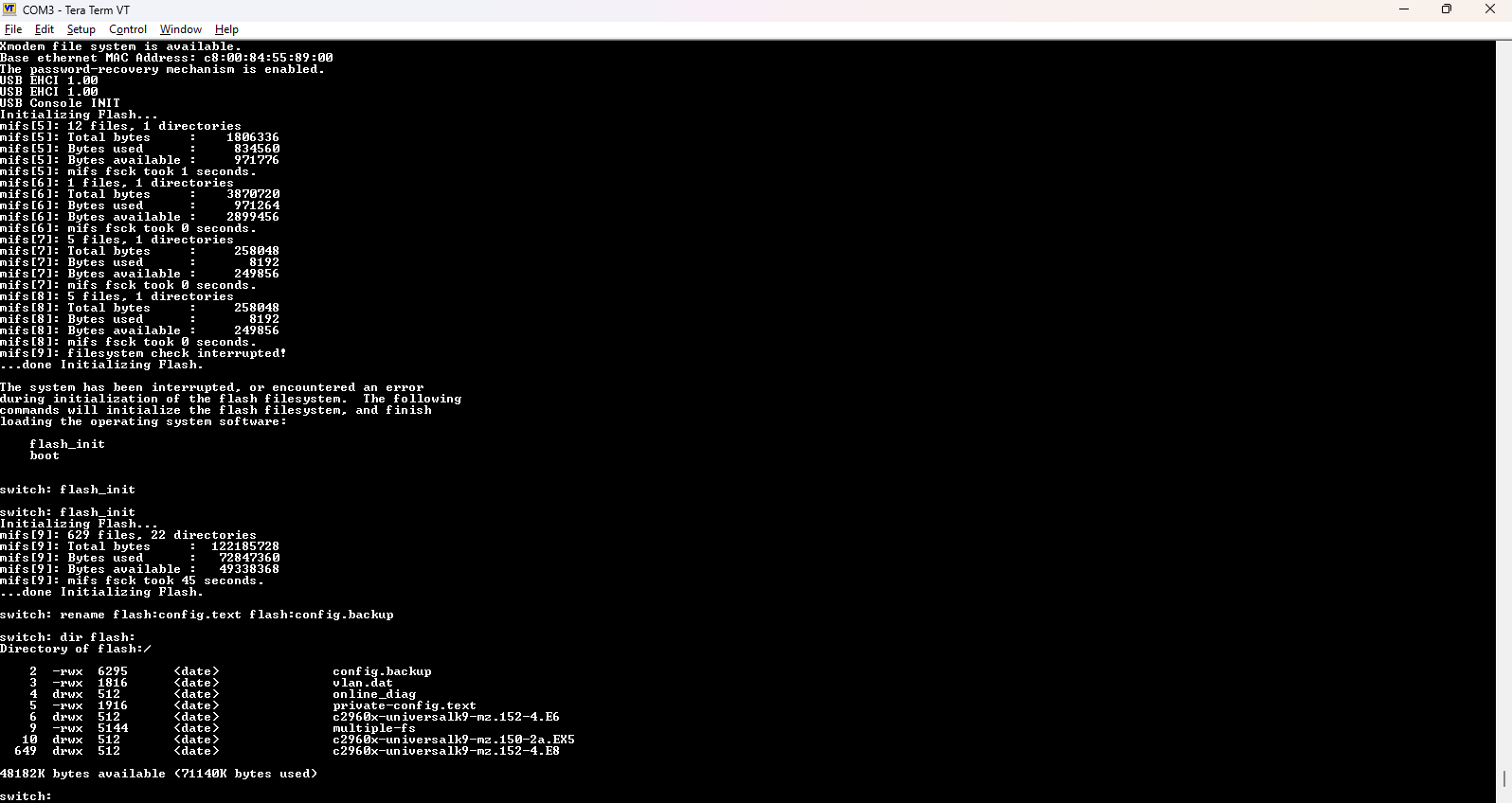

Once in switch: prompt, I had access to the ROMMON bootloader. This allowed bypassing the startup configuration file.

 flash_init
Breakdown
  • Initializes the flash filesystem to allow file access (needed to rename the config file).
rename flash:config.text flash:config.backup
Breakdown
  • Renames the startup config so the switch boots as if it had none. This avoids loading password-protected settings.

Rommon

4. Booted Into IOS Without Config

boot
Breakdown
  • Boots the normal IOS image from flash, now ignoring the renamed startup config.
After a few minutes of IOS decompression, the switch showed:
--- System Configuration Dialog ---
Would you like to enter the initial configuration dialog? [yes/no]:

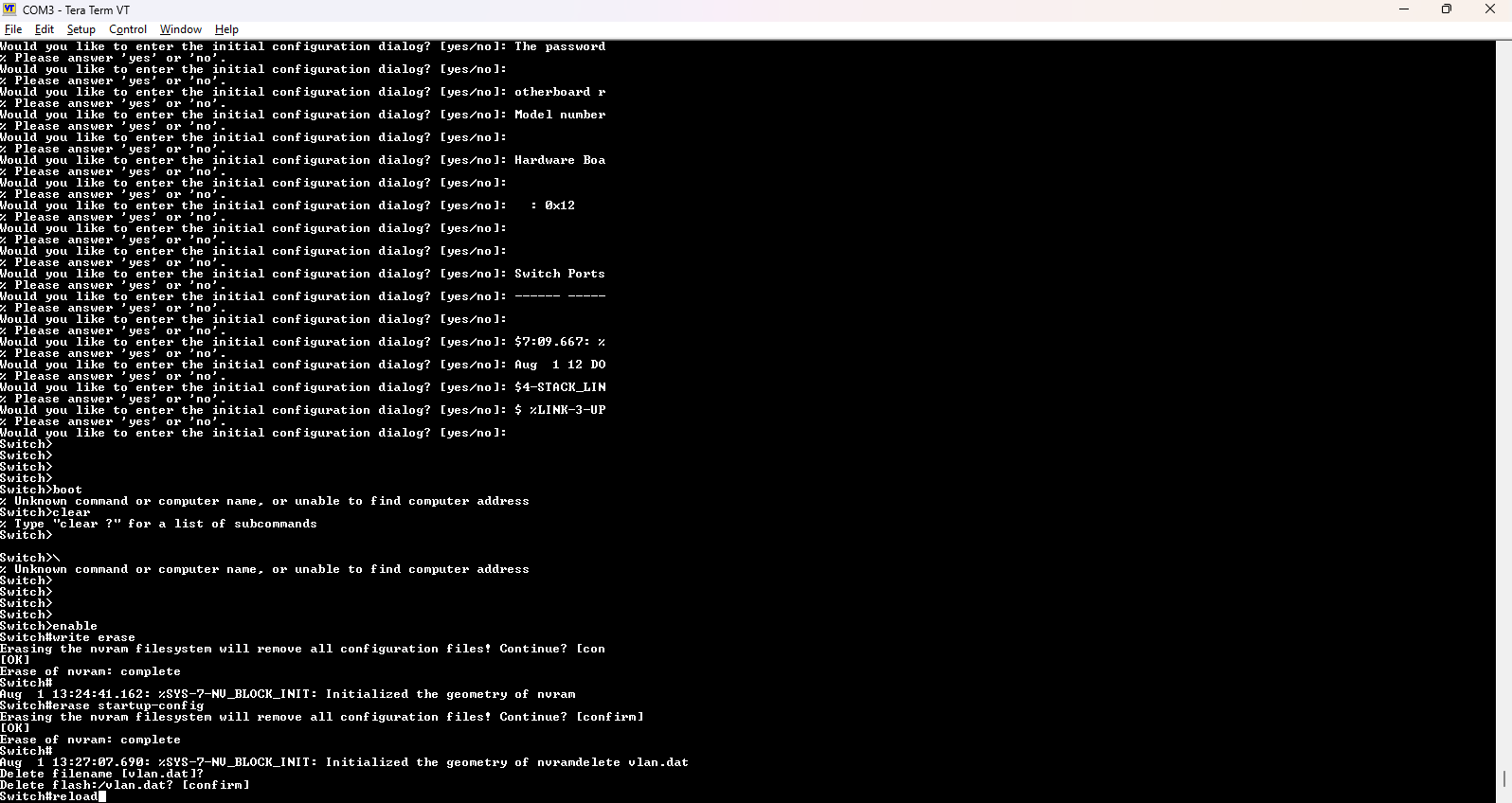

5. Erased All Residual Configurations

Once inside, I chose no and went into privileged EXEC mode.

enable
write erase
erase startup-config
delete vlan.dat
reload
Breakdown

  • write erase: Clears the running configuration

  • erase startup-config: Double-wipes saved configuration

  • delete vlan.dat: Removes all stored VLAN info

  • reload: Restarts the switch to apply clean state

Erased__config

6. Verified Clean Boot

After rebooting, I was again presented with the configuration dialog, and verified:

  • No user accounts exist

  • No VLANs present

  • No SSH/crypto config

  • IOS image passed digital signature verification (proving authenticity)

Final Result

The switch is now fully reset and ready for secure integration into my home lab. I plan to use it for hands-on Layer 2 configuration, trunking, and simulating enterprise-level LAN setups.

What I Learned:

  • Console access isn’t enough; some cables block Break signals, Tera Term was key.

  • Password recovery mode works cleanly if flash is handled properly.

  • Cisco IOS will verify its own integrity if left unmodified, the switch self-validates.

  • Erasing config doesn’t touch the firmware, but that’s okay with verified signed images.

Next Up: Build a lab network with VLANs, DHCP snooping, and switchport security. This device will be the backbone of the lab.

Last updated on 2025-08-07
